Products and Solutions
- 产品描述
-

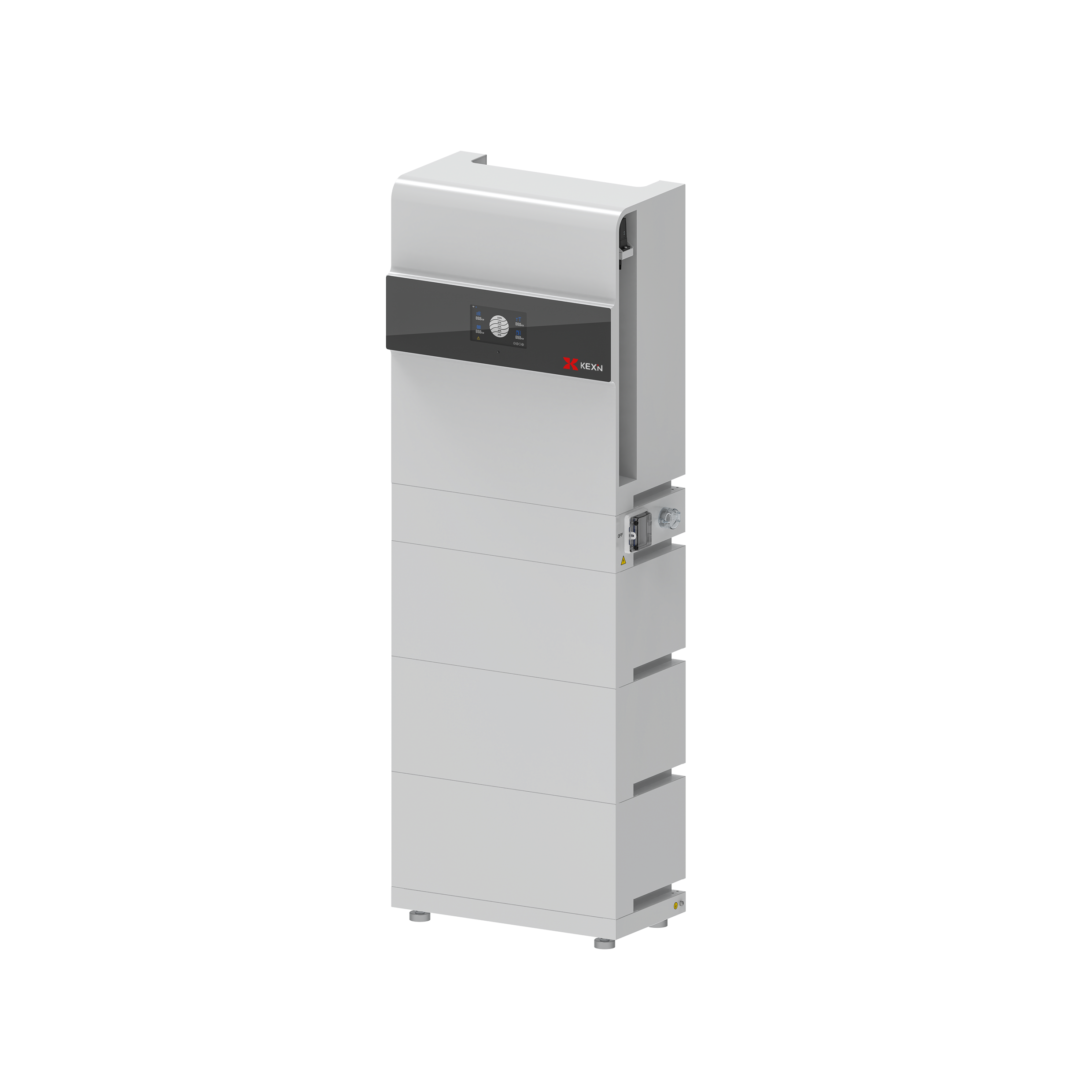

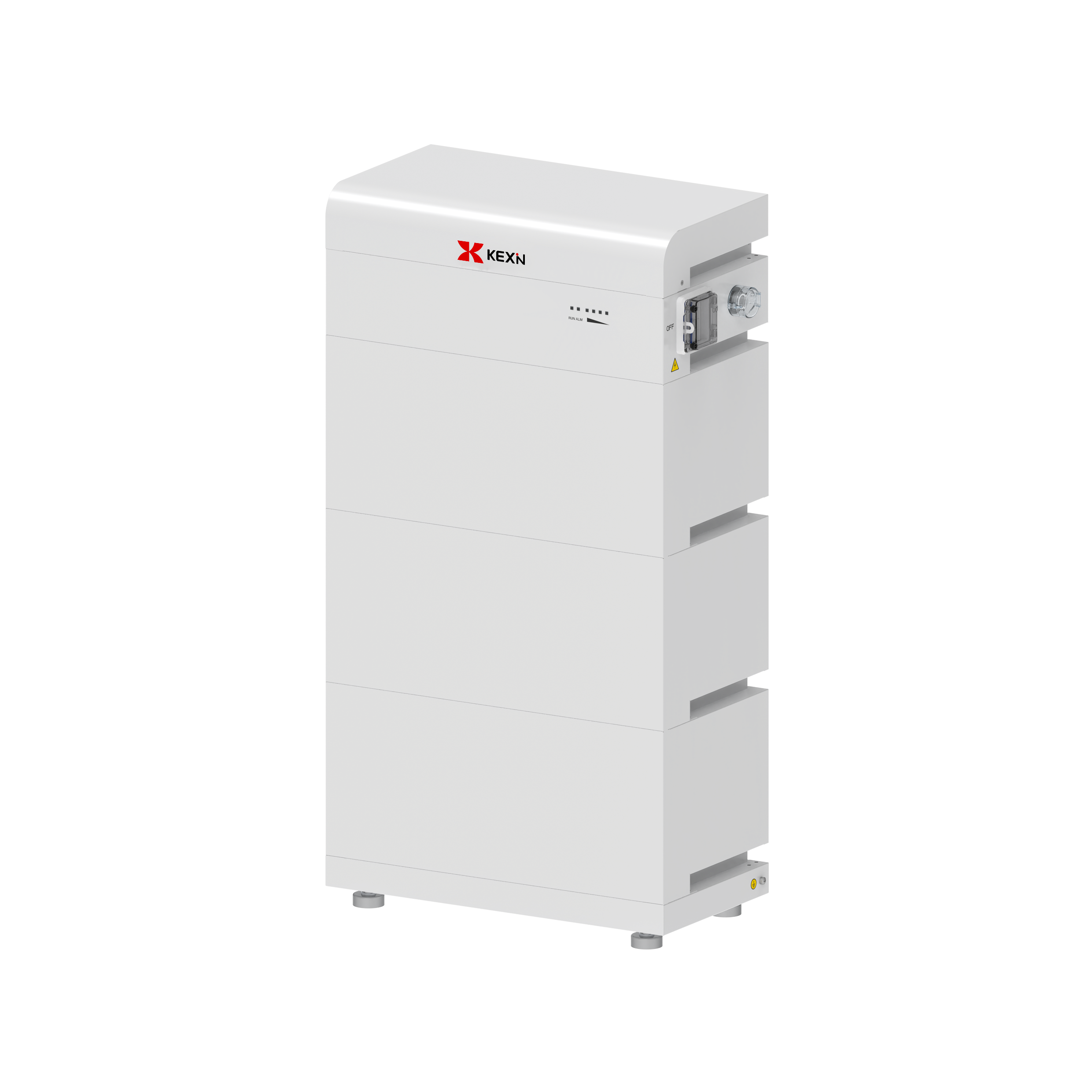

- Commodity name: High voltage stacked energy storage - 100Ah
Product Features
- Modular design between cases, quick-plug design of connectors, easy installation；
- Wide voltage PDU design, can meet 5~8 battery packs in series combination；
- Different combinations of 25~40kWh charge capacity to cope with different usage scenarios；
- Built-in WIFI and wireless 4G module expansion for remote upgrades；
- High power systems for special industrial inverter scenarios； BMS multi-protocol, capable of adapting to the mainstream inverter brands on the market；
- Tier 2 architecture and automotive-grade BMS for stable system operation.
Application Areas
- Household energy storage, industrial and commercial energy storage.
Technical Specifications
Product Model UPPF16100F-HS5 UPPF16100F-HS6 UPPF16100F-HS7 UPPF16100F-HS8 Rated voltage 256V 307.2V 358.4V 409.6V Working voltage range 224~292V 268.8~350.4V 313.6~408.8V 358.4~467.2V Rated capacity 100Ah Rated charge capacity 25.6kWh 30.72kWh 35.84kWh 40.96kWh Combination method 1P80S 1P96S 1P112S 1P128S Charging voltage 280V 336V 392V 448V Charging current Duration：30A Maximum：70A Discharge current Maximum continuous current：70A Self discharge rate ≤2%/month Equilibrium mode Passive equalisation Charging temperature 0℃〜+ 55℃ Discharge temperature -20℃〜+ 60℃ Protection level IP54 Communication method CAN/RS485/WIFI/4G/Bluetooth Dimension 635*480*735 635*480*835 635*480*935 635*480*1035 Weight 275kg 320kg 365kg 410kg DOD ≤90% Cycle life ＞6000cyc@90%DOD,25℃,0.5C Certification UN38.3、CE、IEC62619、ROHS
